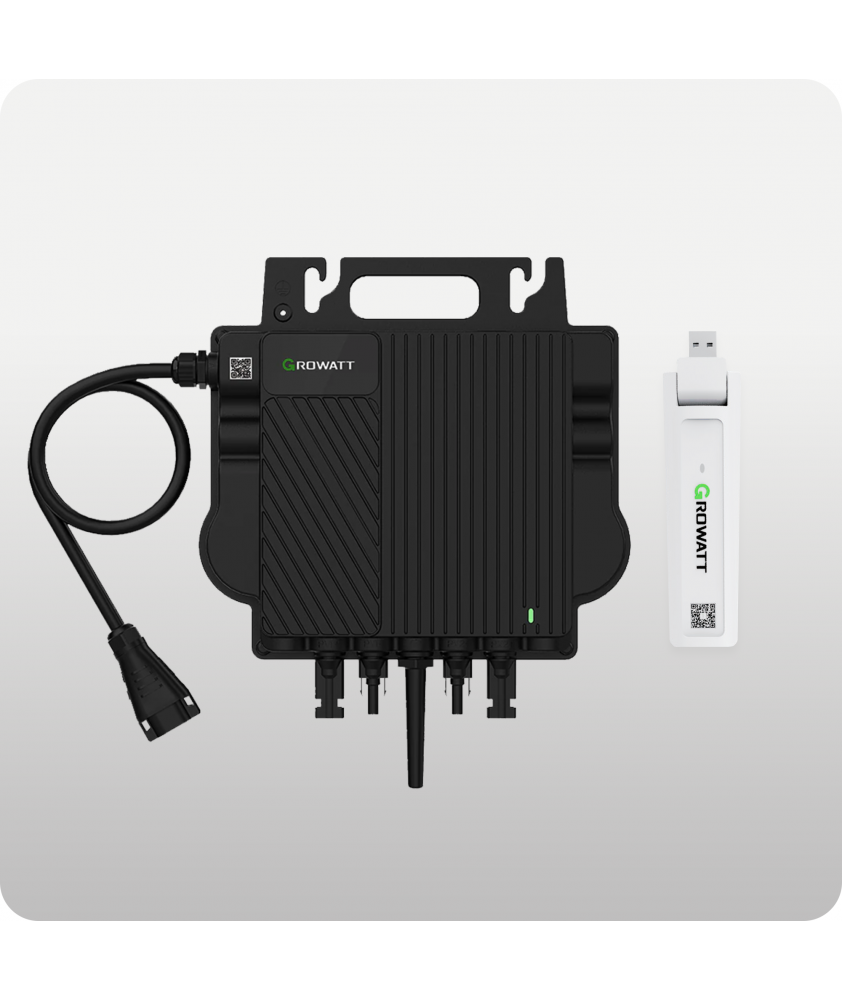

Growatt NEO 1000M-X (RF) EU LoRa Mini Solar Invert

The Growatt NEO 1000M-X is a powerful microinverter with two independent MPP trackers and LoRa communication. Includes ShineWeLink data logger for wireless connectivity and convenient system monitoring via app.

Package contents:

• 1 x Growatt ShineWeLink Data Logger
• 1 x Growatt NEO 1000M-X (RF) EU LoRa

Growatt

The Growatt NEO 1000M-X is a highly efficient microinverter for PV systems with two independent MPP trackers. It is ideal for high-performance modules and flexible roof orientations.

With an integrated protection concept (IP67, Anti-Islanding, Type III Surge Protection) and LoRa communication, it offers exceptional safety and connectivity. Combined with the ShineWeLink data logger, simple monitoring via the ShinePhone app is possible.

Features

• Two MPP trackers
• Optimal energy utilization through two independent MPP trackers – perfect for different module orientations.

Connectivity with ShineWeLink

Wireless data transmission via LoRa to ShineWeLink for seamless monitoring via app.

Protection class IP67

Complete protection against dust and powerful water jets. Ideal for robust outdoor use.

Safety functions

Integrated surge protection, short-circuit protection, and anti-islanding protection. Complies with EN50549 and other standards.

Technical Data

• Specification NEO 1000M-X (LoRa)
• AC Nominal Power 1000 W
• MPP Trackers 2
• MPPT Voltage Range 28-60 V
• Max. Input Current per Tracker 18 A
• Max. Efficiency 97.3 %
• Communication LoRa via ShineWeLink
• Protection Rating IP67
• Cooling Natural convection
• Dimensions (W x H x D) 270 × 252 × 41.5 mm
• Weight 3.1 kg
• Standards EN 50549-1, CEI 0-21, VDE N4105, etc.

Scope of delivery

• Growatt NEO 1000M-X with ShineWeLink
• Growatt NEO 1000M-X Microinverter
• Growatt ShineWeLink Data Logger
• USB Power Adapter (for ShineWeLink)
