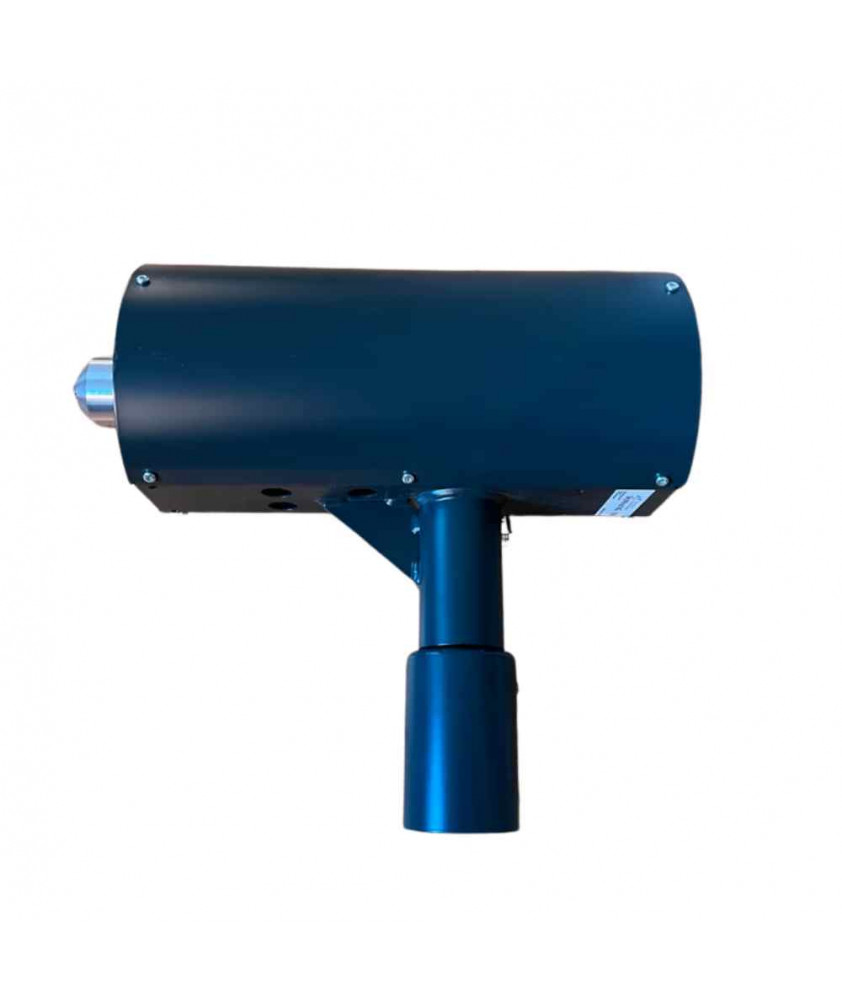

SkyWind NG micro wind turbine nacelle with mast adapter

SkyWind Nacelle with Generator

Perfect as a replacement for an existing system – if you need a new nacelle, you've come to the right place. Brand new and unused. Ready for immediate delivery, and we can ship this SkyWind NG generator worldwide.

🏚 Nacelle with anti-reflective coating, grey

The Nacelle – The Heart of Your Small Wind Turbine

The nacelle is the core of every small wind turbine. It houses the powerful generator, which efficiently converts the rotation of the rotor blades into electricity. Thanks to precise engineering and high-quality materials, the nacelle ensures that the captured wind energy is reliably converted into electrical energy. It not only protects the technology from environmental influences but also maximizes energy yield – for optimal efficiency and sustainable power production on your property.

Choose a nacelle that combines performance, protection, and durability – for a wind power system that truly makes the most of every breeze!

✅Operating speed: 300–1500 rpm

✅Generator: Gearless PMG, C8 ceramic

✅Internal resistance: approx. 1.1 ohms

✅Voltage range (under load): Min. 15V, Max. 40V DC

✅Maximum load current: 30 A

✅Short-circuit current (<10 s): 45 A

✅Survivable wind speed: approx. 40 m/s

✅Self-consumption at idle: <10 W (incl. storm shutdown)

✅Grid feed-in (optional): Supplied 1 kW wind inverter

Frequently Asked Questions About Our Small Wind Turbine Nacelle

1. What exactly is the nacelle in a small wind turbine?
The nacelle is the central component of the wind system. It contains the generator that converts the mechanical energy from the rotor blades into electrical power and protects the inner components from environmental effects like rain, snow, and wind.

2. What role does the generator play in the nacelle?
The generator is the core of the nacelle: it uses the rotational movement of the rotors to generate renewable energy efficiently and reliably – even in low wind conditions.

3. What materials is the nacelle made of?
Our nacelles are made from high-strength, weather-resistant materials. This ensures long-term durability, protection of sensitive components, and consistently high energy output.

4. How does the quality of the nacelle affect energy production?
A high-quality nacelle significantly improves the efficiency of the wind system. It ensures smooth operation of the generator and prevents energy loss due to weather-related factors.

5. Is the nacelle low maintenance?
Yes! Our nacelles are designed for minimal maintenance. High-quality seals and corrosion-resistant materials drastically reduce upkeep and ensure long service life.

6. Can the nacelle be replaced or upgraded if needed?
Yes, our models allow for easy replacement or upgrading of the nacelle.

7. What wind conditions is the nacelle suitable for?
Our nacelles are designed for a wide range of wind conditions – from light to moderate wind zones. They optimize energy output regardless of the season.
