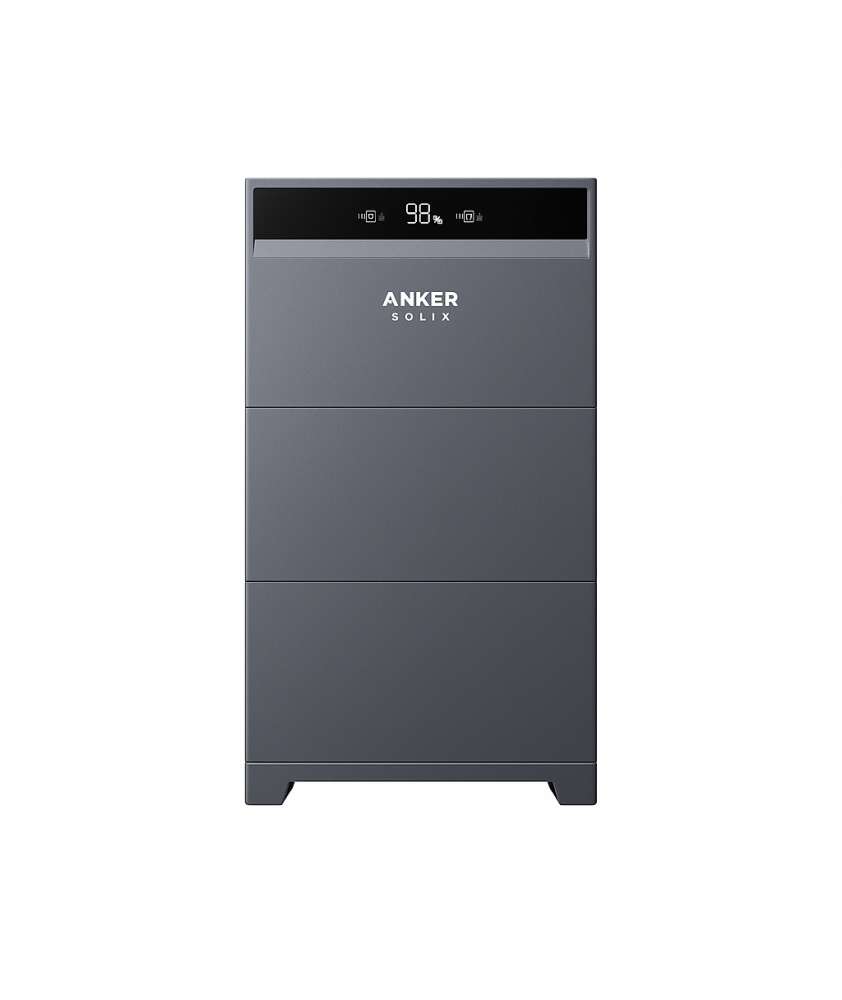

Anker Solix X1 System represents the latest generation of intelligent photovoltaic storage solutions

🌞 Energy Storage System with Maximum Power and Efficiency

The Anker Solix X1 System represents the latest generation of intelligent photovoltaic storage solutions. It combines modern design, high safety standards, and premium technology in a compact IP66 housing (only 15 cm deep). Thanks to 100% PV oversizing, an integrated heater for operation down to –20 °C, and C5 corrosion protection class, it is ideal for both indoor and outdoor installation.

With on-site Anker support and the intuitive Anker App, commissioning can be completed in just a few minutes – easily via smartphone.

⚙️ Main Technical Features

• Maximum PV Input Power: 20 kW

• Maximum Input Voltage: 1000 V DC

• MPPT Voltage Range: 140 – 950 V DC

• Maximum Apparent Output Power: 11 kVA

• Number of MPPTs: 2

• Noise Level: 30 dB (whisper quiet)

• Communication: WiFi dongle and integrated energy meter (standard)

• Protection Class: IP66, C5 corrosion protection

• Warranty: 10-year standard warranty

• Weight: 30 kg

📦 Installation Note:
When using 4 battery modules, the stack must be mounted on the floor – not on the wall.

⚠️ Note for Installations in Belgium

This model (11 kVA) exceeds the permitted grid limit of 10 kVA and may not be installed in Belgium.
Please use one of the compliant models listed below:

• Anker Solix X1-H5K-T (5 kVA 3PH)

• Anker Solix X1-H8K-T (8 kVA 3PH)

Weight:

207 kg

Rated Power:

10,000 W

Min MPP Voltage:

75 V

Max MPP Voltage:

550 V

DC Start Voltage:

75 V

Min DC Operating Voltage:

600 V

Max Input Voltage:

600 V

Max DC Power:

10,000 W

Max AC Input Power:

5,500 W

Surge AC Power (1 Second):

5,500 W

Max DC Current:

16 A

Max DC Inputs:

2

Incl. DC Fuse:

0

Connector Type:

MC4

Included Connectors:

0

European Efficiency:

96.7 %

Transformer:

None

MPP Trackers:

2

Incl. DC Switch:

Yes

Warranty:

10 Years
